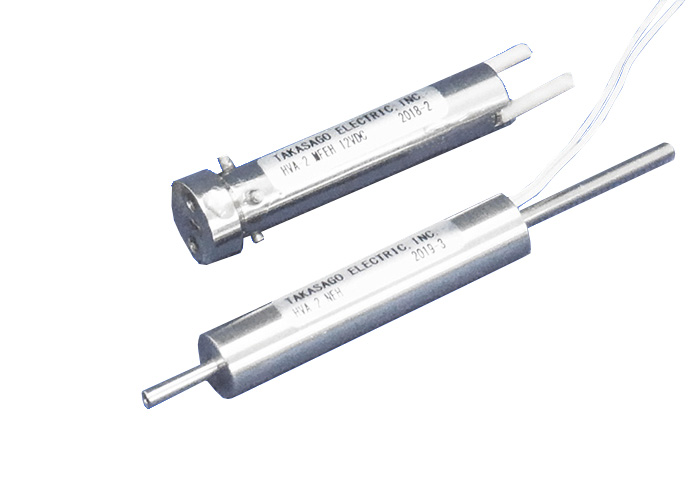

HVA/HVAL series miniature thruster valves

HVA/HVAL series miniature thruster valves

Beschreibung

2 MPa pressure rating.

Compact and lightweight.

ISO19683 vibration and shock requirements met (HVA-2-MFE).

Spezifikationen

Model Number
HVA-2-N1E
HVA-2-MFE
HVAL-2-MFE
Solenoid Type
Normally Closed
Latching
Latching
Orifice Diameter
0.4 mm
0.4 mm
0.4 mm
Port Connection
Pipe
Gasket (Manifold Mount)
Gasket (Manifold Mount)
Operating Pressure Range
0 - 2 MPa (Inlet Port)
0 - 2 MPa (Inlet Port)
0 - 2 MPa (Inlet Port)
Temperature Range
-20 ~ 70 ˚C *1
-20 ~ 70 ˚C *1
-20 ~ 70 ˚C *1
Rated Voltage
12 VDC | 24 VDC
12 VDC | 24 VDC
12 VDC | 24 VDC
Holding Voltage
3 VDC
N/A
N/A
Power Consumption
12 W (Rated Voltage)
0.8W (Holding Voltage)
24 W
24 W
Duty Cycle
Intermittent ED: 0.5% (Maximum On Time: 10s)
with holding Voltage: Continuous
Intermittent ED: 0.5% (Maximum On Time: 10s)
with holding Voltage: Continuous
Intermittent ED: 0.5% (On Time: 0.2 - 1 s)
Sealing Material
EPDM (Optionally FKM, FFKM)
EPDM (Optionally FKM, FFKM)
EPDM (Optionally FKM, FFKM)
Outer Dimensions
Dia. 6.2 × L58 mm
Dia. 6.2 × L31.4 mm
Dia. 6.2 × L31.4 mm
Weight
8g
8g
8g

*1: The temperature range may change depending on the sealing material.

Note: Details including specifications may change at any time without notification.
